What Fuses and Busbars Do in a LiFePO4 Battery System？
A practical guide to circuit protection, DC power distribution, and cleaner battery wiring
Fuses and busbars are often shown together in battery wiring diagrams, which can make their roles seem interchangeable. They are not. One protects the circuit when current becomes excessive; the other provides an orderly way to distribute power to several devices.
Two parts with different jobs
A fuse and a busbar often sit close together in an RV, marine, solar, or off-grid battery system, but they do different work. The fuse interrupts excessive current. The busbar gives several devices a shared connection point for DC power.

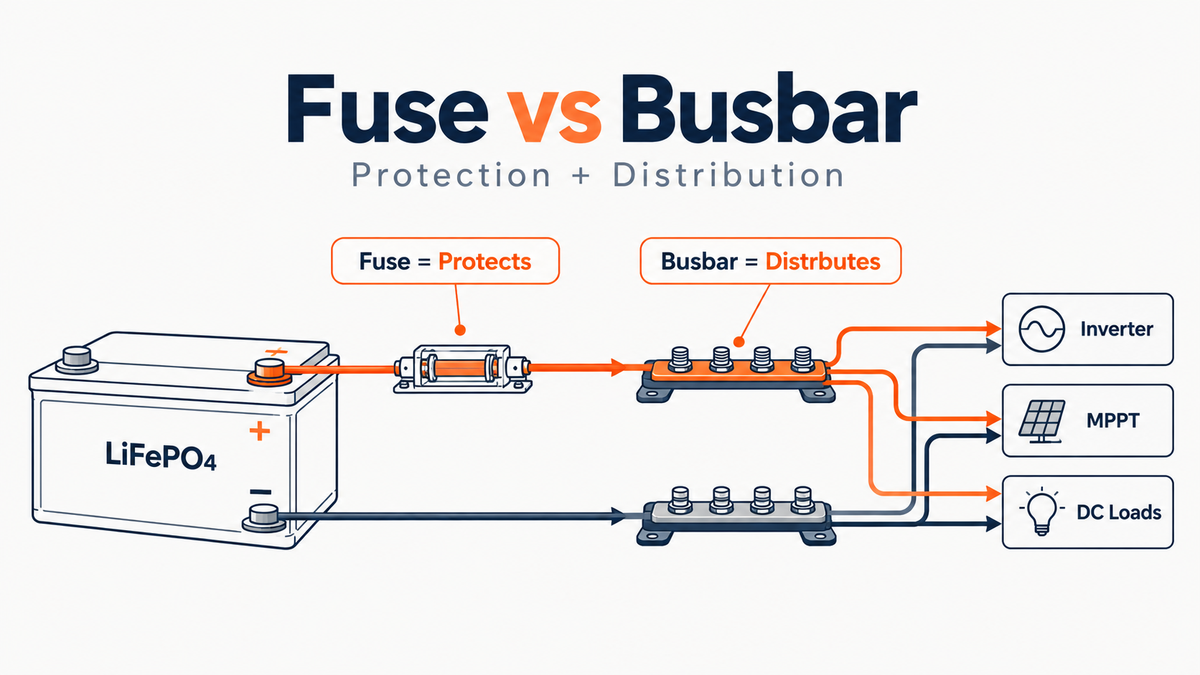

BUKNUWO LiFePO4 battery > main fuse > busbar > inverter, MPPT controller, and DC loads
Keeping those roles separate makes the system easier to design and easier to troubleshoot. It also prevents a common mistake: treating a busbar as if it provides circuit protection.
What the battery fuse protects
A battery fuse protects the cable and the electrical circuit from excessive current. If a short circuit or severe overload occurs, the fuse opens the circuit before the wiring overheats or connected equipment is damaged.
The fuse is selected for the circuit, not simply for the battery's amp-hour rating. Cable size, maximum expected current, inverter requirements, system voltage, and the specifications of connected equipment all matter.
This is why two systems using the same battery capacity may need different fuse arrangements. Their cable sizes, inverter loads, and downstream equipment may be different.
Why the main fuse belongs close to the battery
The main fuse is normally installed close to the positive battery terminal. Placing it there reduces the length of positive cable that remains connected directly to the battery without protection.
Battery positive > main fuse > cable > busbar or inverter
A fuse farther down the cable leaves the section between the battery and the fuse exposed. In a high-current DC system, the goal is to keep that unprotected section as short as the installation allows.
What a busbar adds to the system
A busbar is a high-current distribution point. Instead of stacking several cable lugs on one battery terminal, the battery connects to positive and negative busbars. The inverter, MPPT charge controller, DC fuse box, charger, and other DC equipment can then connect through those distribution points.
This arrangement reduces crowding at the battery terminals and gives the system a cleaner layout. Connections are easier to inspect, and tracing a circuit during maintenance or troubleshooting becomes more straightforward.
A busbar does not replace a fuse
A standard busbar distributes current but does not interrupt a fault. Some products combine distribution and fuse protection in one assembly, yet the two electrical functions remain separate.
A typical layout uses a main fuse before the positive busbar and individual fuses for downstream branches. The main fuse protects the main cable and overall feed. Each branch fuse is then chosen for its smaller cable and connected load.
Battery > main fuse > busbar > individual branch fuses > loads
Why one large fuse may not be enough
A large main fuse may be appropriate for the main battery cable but too large to protect a smaller cable leaving the busbar. Each downstream branch should have protection that matches its cable size and the requirements of the connected equipment.
This applies whether the branch feeds an inverter, charger, MPPT controller, DC fuse box, or another load. A neat busbar layout does not remove the need to consider every branch as its own circuit.
How to choose the fuse
Start with the maximum current the circuit is expected to carry. Then check the cable ampacity, system voltage, and the fuse requirements provided for the inverter or other equipment. The selected fuse must protect the wiring while allowing the circuit to operate normally.
Do not size the fuse from battery capacity alone. A 100Ah or 200Ah label describes stored charge, while fuse selection depends on the current and wiring in the actual circuit.
How to choose the busbar
Choose a busbar rated for the maximum current expected in the system and suitable for the system voltage. Check that it has enough terminals for the planned connections and that its stud size matches the cable lugs.
An insulated cover is also an important practical feature. Before installation, confirm that the busbar, cables, lugs, fuses, and connected devices are all rated for the same operating conditions.
Plan the DC system as a whole
A reliable LiFePO4 installation depends on several parts working together. The BMS manages and protects the battery. The fuse protects the wiring and circuit. The busbar distributes current. The cable carries that current between components.
For a BUKNUWO RV, marine, solar, or off-grid system, choose the battery, cable, fuse, busbar, and inverter as one complete DC system. Matching each component to the expected current produces a layout that is easier to inspect, maintain, and troubleshoot.
|
Component |
Main Function |
|
Fuse |
Protects the wiring and circuit |
|
Busbar |
Distributes current |
|
BMS |
Protects and manages the battery |
|
Cable |
Carries current |
Frequently Asked Questions
What is the main purpose of a battery fuse?
To interrupt excessive fault current and protect the wiring and electrical system from dangerous overheating or damage.
What is the purpose of a battery busbar?
To provide a common high-current connection point so battery power can be distributed to multiple devices.
Do I need a fuse between the battery and busbar?
In typical high-current DC systems, the battery cable should have appropriate protection close to the battery positive terminal. The exact fuse type and size depend on the battery, cable and system design.
Does a busbar replace a fuse?
No.A normal busbar distributes current but does not automatically protect the circuit.
Can I connect an inverter directly to a busbar?
Yes, if the busbar, cables, fuse and inverter connection are all properly rated for the required current.
