Winter Solar Panel Voc: A Cold-Weather Design Review
Why panel voltage rises in the cold, how the numbers change in a series string, and what an MPPT controller must handle
Our calculation review confirms the basic winter warning: cold solar cells produce a higher open-circuit voltage. A single panel may only gain a few volts, but a series string adds every one of those increases before the power reaches the MPPT controller.
Verdict: Cold-weather Voc must be included when sizing any series-connected PV array.
Review question: does winter really raise panel voltage?
Yes. A solar panel commonly produces a higher open-circuit voltage, or Voc, when its cells are cold. The change is normal and predictable from the panel's temperature coefficient.
The effect becomes a design issue when several panels are wired in series. Their voltages add together, so a string that looks comfortable at the standard rating temperature can move much closer to the MPPT controller's voltage limit on a cold morning.
Why the voltage rises
Solar panels are normally rated at a cell temperature of 25°C, or 77°F. Most panels list a negative Voc temperature coefficient. In practical terms, this means Voc falls as cell temperature rises and increases as cell temperature falls.
Higher cell temperature > lower Voc | Lower cell temperature > higher Voc
The coefficient belongs to the panel model, so the datasheet value matters. Using a generic assumption can miss the actual voltage rise for the modules in the system.

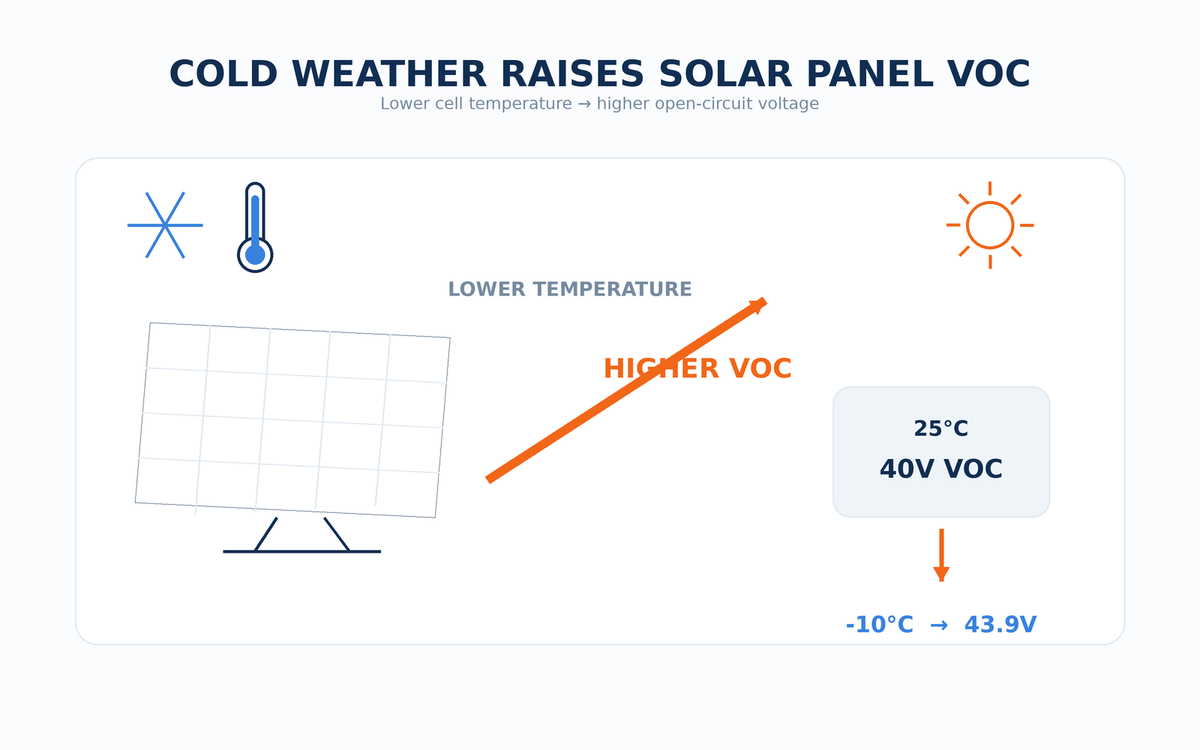

Calculation check: one 40V panel at -10°C
The source example uses a panel rated at 40V Voc with a Voc temperature coefficient of -0.28% per degree Celsius. At an estimated cell temperature of -10°C, the temperature difference from the 25°C rating point is 35°C.
Estimated increase = 35 x 0.28% = 9.8%
Cold-weather Voc = 40V x 1.098 = approximately 43.9V
The result is a rise of nearly four volts from a single panel. That may seem modest until the same adjustment is applied to every panel in a series string.
Series-string check: three panels
Three 40V panels in series have a combined rated Voc of 120V at 25°C. Using the rounded 43.9V value for each panel gives 131.7V. Keeping the full intermediate value and rounding at the end gives about 131.8V. Either method shows the same design issue: the winter string voltage is well above 120V.
Cold-weather string Voc must remain below the MPPT maximum PV input voltage.
That comparison should be made before installation. A controller's maximum input voltage is a hard design limit, not a target for normal operation.
Series and parallel behave differently
Series wiring adds panel voltage while current remains similar. Parallel wiring keeps voltage similar while current increases. This is why winter Voc is especially important when deciding how many panels to place in each series string.
|
Connection |
Voltage |
Current |
Winter Voc Concern |
|
Series |
Increases |
Remains similar |
Higher string voltage |
|
Parallel |
Remains similar |
Increases |
Voltage does not add |
What an overvoltage event can look like
If the string Voc exceeds the controller's maximum input voltage, the result may be a PV overvoltage warning, charging shutdown, or MPPT protection. In a more serious case, the controller may be damaged.
The first visible symptom may be a system that stops charging during the coldest part of the morning and resumes later as the panels warm. Even if protection operates, a design that crosses the published limit should be corrected rather than treated as normal behavior.
Our design verdict
Winter Voc is a high-priority sizing check for any series-connected array. The calculation is simple, but skipping it can put the most voltage on the controller at exactly the time when the system designer may expect cold weather to improve solar performance.
For a BUKNUWO LiFePO4 solar system, the sensible approach is to leave adequate voltage headroom. Designing the array right at the MPPT limit leaves no room for the predictable rise in cold-weather Voc.
A practical winter sizing checklist
1. Find the panel's open-circuit voltage on its datasheet.
2. Find the Voc temperature coefficient for that exact panel.
3. Use the lowest expected local temperature for the estimate.
4. Calculate the adjusted Voc for one panel.
5. Multiply by the number of panels connected in series.
6. Compare the result with the MPPT maximum PV input voltage.
7. Leave suitable voltage headroom instead of sizing to the limit.
Cold voltage does not guarantee more energy
A higher winter Voc does not mean the array will always produce more total energy. Output still depends on sunlight, shading, sun angle, and the number of daylight hours.
The useful conclusion is narrower: cold cells raise open-circuit voltage, and that higher voltage must be included when checking the maximum series-string size.
Final assessment
The 40V example shows why the temperature correction matters. One panel rises to about 43.9V, while a three-panel string moves from 120V to roughly 131.7V or 131.8V, depending on when the intermediate value is rounded.
Before finalizing a winter solar array, calculate the cold-weather string Voc and confirm that it stays below the MPPT controller's maximum input voltage. This is one of the simplest checks in the design, and one of the easiest to regret overlooking.
Frequently Asked Questions
Why does solar panel voltage increase in winter?
Because lower cell temperature increases the panel's open-circuit voltage.
Can winter Voc damage an MPPT?
Yes. If PV string Voc exceeds the MPPT's maximum input voltage, the controller may shut down or be damaged.
Should I calculate solar strings using only datasheet Voc?
No. You should also calculate the expected Voc at the lowest local temperature.
Does cold weather always mean more solar power?
No. Cold temperature can improve voltage, but total solar production still depends on sunlight, shading, sun angle and daylight hours.
