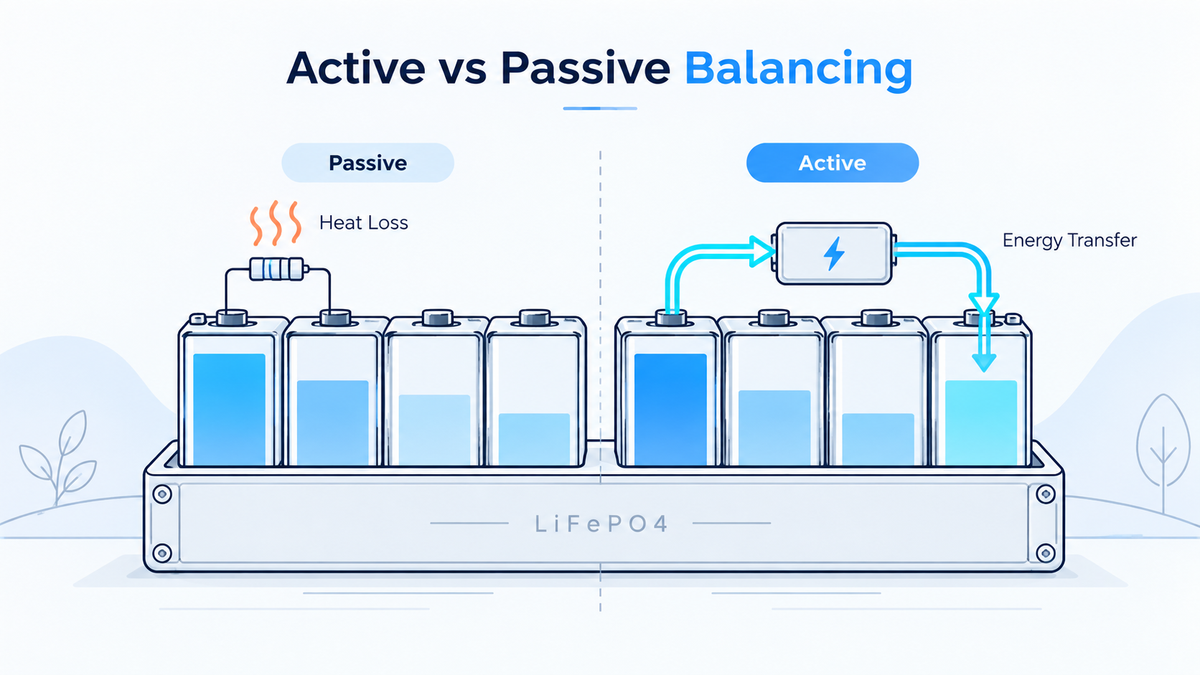

Active vs Passive Balancing in LiFePO4 Batteries
How each balancing method works, where it fits, and what it can and cannot fix
Cell balancing sounds simple until you have to choose between two very different methods. Passive balancing removes a small amount of energy from the highest cells. Active balancing moves energy to cells that are lower. Both aim to keep the pack working together, but they reach that goal in different ways.
What cell balancing actually does
A LiFePO4 battery pack contains several cells working together. Over time, those cells can reach slightly different states of charge. When one cell reaches a voltage limit before the others, the battery management system may use balancing to reduce the difference.
Balancing is a correction process. It helps the cells finish charging more evenly, but it does not restore lost capacity or repair internal damage. That distinction matters when you are trying to decide whether a pack needs time to balance or needs further diagnosis.
How passive balancing works
Passive balancing lowers the charge of a higher-voltage cell by sending a small current through a resistor. The extra energy leaves the circuit as heat.
High-voltage cell > bleed resistor > heat
The design is simple, relatively inexpensive, and well suited to small differences between matched cells. The tradeoff is speed. Because the balancing current is normally small and the energy is discarded, a larger imbalance may take several charging cycles to reduce.
How active balancing works
Active balancing moves energy from a higher-charge cell to a lower-charge cell instead of simply dissipating it. This makes better use of the stored energy and can correct larger differences more quickly.
High-SOC cell > active balancer > low-SOC cell
That added capability requires more complex electronics and usually costs more. Active balancing can be attractive in larger battery packs, when the imbalance is more significant, or when balancing speed and energy efficiency are priorities.
Active and passive balancing compared
Neither method is automatically the right answer for every battery. The useful question is whether the balancing system matches the pack design and the size of the cell differences it is expected to correct.
|
Feature |
Passive Balancing |
Active Balancing |
|
Method |
Removes energy |
Transfers energy |
|
Energy loss |
Higher |
Lower |
|
Balancing speed |
Usually slower |
Usually faster |
|
Cost |
Lower |
Higher |
|
Circuit complexity |
Simple |
More complex |
|
Small imbalance |
Very suitable |
Suitable |
|
Large battery packs |
Suitable |
Often more attractive |
Is active balancing always better?
No. If a LiFePO4 battery is built with closely matched cells and the voltage differences stay small, passive balancing can be entirely adequate. A more complex circuit offers little practical benefit if the battery only needs minor corrections near the top of charge.
Active balancing becomes more appealing as the pack grows, the imbalance becomes larger, or faster correction becomes important. It may also be preferred when reducing energy loss is a design priority. The choice should follow the needs of the battery rather than the appeal of a more advanced label.
Why passive balancing is common in consumer batteries
Many consumer LiFePO4 batteries use closely matched cells. When those cells remain reasonably even, the BMS only needs to correct small differences. Passive balancing offers straightforward hardware, lower cost, and proven reliability, which makes it practical for RV, camping, marine, and solar applications.
BUKNUWO's currently published BMS information identifies passive balancing for its listed LiFePO4 battery configurations. That choice is consistent with a system designed to manage normal, relatively small cell differences.
What balancing cannot fix
Active and passive balancing can reduce differences in cell state of charge. Neither method can repair a damaged cell, reverse severe capacity loss, correct high internal resistance, or fix an internal cell failure.
A repeated pattern is more useful than a single reading. If the same cell consistently reaches high-voltage or low-voltage protection before the others, the pack needs further diagnosis. Adding a different balancing method does not remove the underlying fault.
What to watch in the BMS data
When investigating cell imbalance, monitor the highest and lowest cell voltages, the voltage difference between them, state of charge, charge current, and BMS protection status. The key question is whether the same cell repeatedly reaches the protection limit first.
Check these readings over more than one charge cycle. A changing spread may indicate routine balancing activity, while the same cell repeatedly separating from the group deserves closer attention.
Frequently Asked Questions
Is active balancing better than passive balancing?
Active balancing is more energy-efficient and may correct larger differences faster, but passive balancing is simpler and often sufficient for well-matched LiFePO4 packs.
Does passive balancing waste energy?
Yes. It dissipates a small amount of excess cell energy through resistors as heat.
Does active balancing create no heat?
No. Active balancing is more efficient, but real energy-transfer circuits still have conversion losses.
Can active balancing fix a damaged cell?
No.
Balancing can reduce SOC differences, but it cannot repair a physically degraded cell.
Does BUKNUWO use active or passive balancing?
BUKNUWO's currently published configuration information states that the listed LiFePO4 models use passive balancing.
