How to Choose a LiFePO4 Battery for a Trolling Motor
Choosing a LiFePO4 battery for a trolling motor involves more than selecting the largest amp-hour rating. The battery system must match the motor voltage, provide enough stored energy for the planned trip and support the motor’s current requirements. Installation space, charging time and other onboard electrical loads also affect the decision.

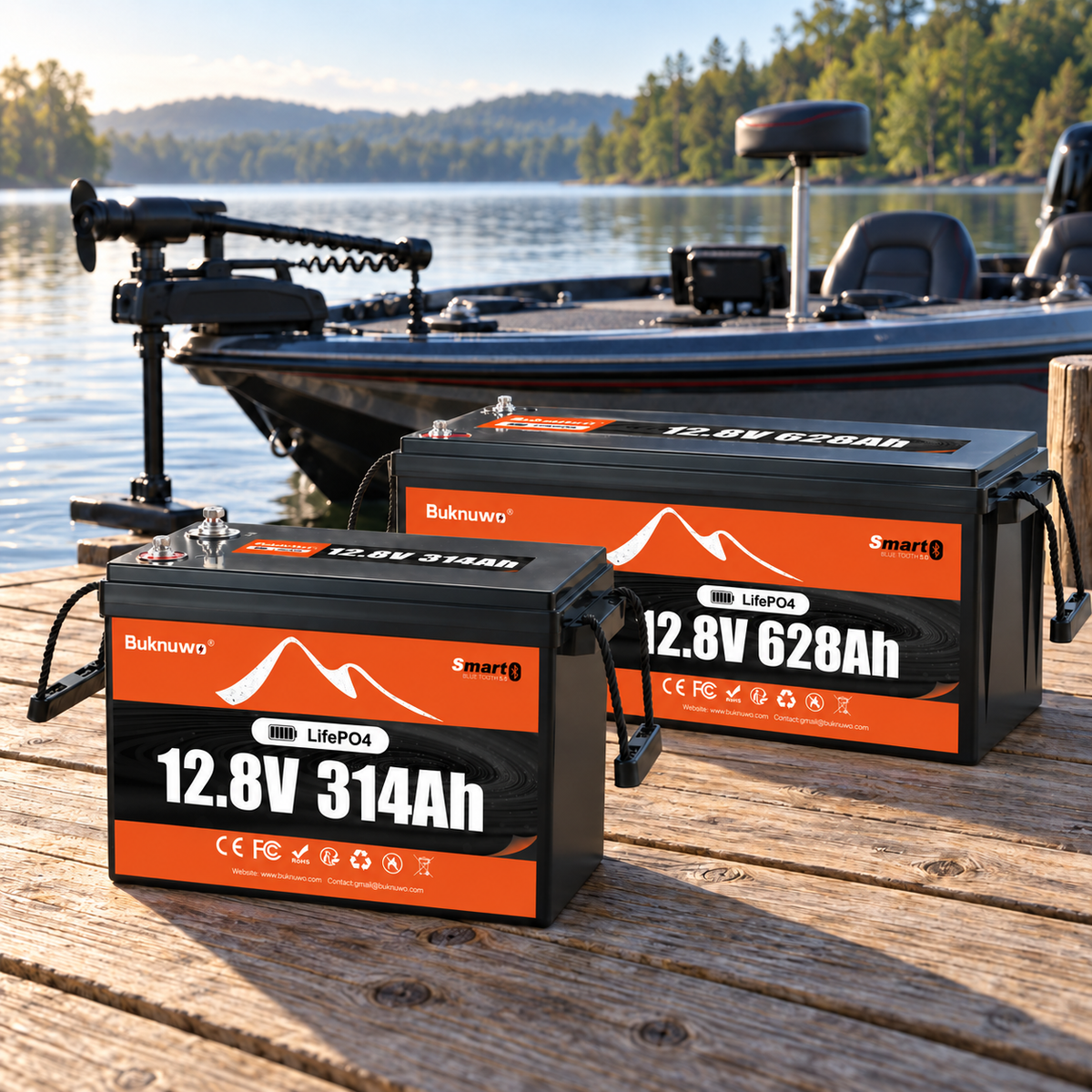

This guide explains how to choose a LiFePO4 trolling motor battery and compares the BUKNUWO 12.8V 314Ah and 12.8V 628Ah Bluetooth LiFePO4 batteries as two high-capacity options. It is intended as a planning guide rather than a guarantee of compatibility with every trolling motor.
Important: BUKNUWO 314Ah and 628Ah batteries are deep-cycle energy-storage batteries. They are not starting batteries and must not be used to start an outboard motor, inboard engine, automobile engine, generator or other engine.
Start with the Trolling Motor Voltage
The first step is to check the trolling motor nameplate or owner’s manual. Battery-system voltage must match the motor’s rated voltage.
- A 12V trolling motor requires a 12V-class battery system.
- A 24V trolling motor requires a 24V-class battery system.
- A 36V trolling motor requires a 36V-class battery system.
Do not choose system voltage based only on motor thrust. Two motors with a similar thrust rating may have different voltage and current requirements.
The BUKNUWO 314Ah and 628Ah models discussed in this guide are both rated at 12.8V. A single battery is therefore intended for a 12V-class system. Series connections may be used only when the exact battery model supports them and all installation requirements are followed.
Capacity Determines Energy, Not Compatibility by Itself
Battery capacity is measured in amp-hours (Ah). A higher Ah rating generally provides more stored energy and potentially longer operating time under the same conditions.
The BUKNUWO 12.8V 314Ah battery stores approximately 4.02kWh of nominal energy. The 12.8V 628Ah model stores approximately 8.04kWh. The 628Ah model therefore has twice the rated capacity of the 314Ah model.
Under the same load and operating conditions, twice the rated capacity may provide approximately twice the theoretical runtime. Actual trolling-motor runtime will still change with:
- Motor speed and operating mode
- Boat weight and load distribution
- Wind, waves and water current
- Propeller condition and underwater resistance
- Battery state of charge and temperature
- Wire length, connection quality and voltage drop
- Other equipment powered by the same battery system
For the most useful estimate, check the motor manufacturer’s current data and measure actual current during normal use. Avoid treating a generic runtime estimate as a guaranteed result.
When comparing trolling motor battery size, use capacity to estimate energy needs, then verify voltage and current compatibility separately. This produces a more useful trolling motor battery runtime estimate than choosing a battery by capacity alone.
Check Maximum Current and Startup Requirements
Amp-hour capacity answers an energy question: how much energy the battery stores. It does not answer whether the battery can safely support the motor’s current demand.
Electric motors may require higher current during startup, rapid acceleration, high-speed operation or when the propeller encounters weeds or increased resistance. Before choosing a battery, check the motor documentation for:
- Maximum amp draw
- Startup or peak-current requirements
- Recommended circuit breaker or fuse
- Recommended cable size
The BUKNUWO 314Ah and 628Ah batteries are specified with a 200A maximum continuous discharge current. The motor and every other load operating from the same battery bank must remain within the battery system’s documented limits.
Current-limit reminder: A BMS over-current protection threshold is not the same as a usable surge-current rating. Do not use a protection threshold as a target operating current or as proof that a battery can support a specific motor startup load.
If the motor manufacturer does not provide startup-current information, contact the motor manufacturer or BUKNUWO support before installation.
BUKNUWO 314Ah vs. 628Ah for Trolling Motor Use
| Comparison | 12.8V 314Ah | 12.8V 628Ah |
|---|---|---|
| Rated capacity | 314Ah | 628Ah |
| Nominal energy | Approximately 4.02kWh | Approximately 8.04kWh |
| Maximum continuous discharge current | 200A | 200A |
| Bluetooth monitoring | Supported | Supported |
| Planning direction | Long single-day trips or systems with lower total energy demand | Multi-day trips, longer runtime or systems with higher total energy demand |
| Installation consideration | Requires less space than the 628Ah model | Requires more installation space and load capacity |
| Charging consideration | Lower capacity to replenish | Takes approximately twice as long to replenish under the same charging conditions |
| Engine starting | Not supported | Not supported |
The larger 628Ah battery mainly provides more stored energy. It does not have a higher published maximum continuous discharge current than the 314Ah model. Both are rated at 200A maximum continuous discharge.
When the 314Ah Model May Be the Better Fit
A 314Ah trolling motor battery may be a practical high-capacity option when its voltage and current limits match the motor.
The 314Ah model may be the more practical choice when:
- The planned trip is mainly a single day or an extended day on the water.
- The trolling motor is used at moderate power for much of the trip.
- Charging is available between trips.
- Installation space and onboard weight are important constraints.
- The battery is not expected to power many additional devices.
This does not mean the 314Ah model is automatically compatible with every 12V trolling motor. The motor’s maximum and startup-current requirements must still be checked.
When the 628Ah Model May Be the Better Fit
A 628Ah trolling motor battery provides twice the rated capacity of the 314Ah model for applications that need more stored energy.
The 628Ah model may be worth considering when:
- The boat is used for multi-day trips or long periods between charging.
- More reserve energy is needed for wind, current or changing conditions.
- The battery system also supports compatible onboard electronics.
- The installation has adequate space, structural support and secure mounting.
- The charging system can reasonably replenish the larger capacity.
A larger capacity does not solve a voltage mismatch or an unsupported startup-current requirement. It also does not convert a deep-cycle battery into an engine-starting battery.
Include Other Onboard Loads
If the trolling motor battery also powers other equipment, include those loads when planning capacity and current. Common examples include:
- Fish finders
- Navigation lights
- Bilge and livewell pumps
- USB chargers
- Marine electronics
Some boat owners use a dedicated battery bank for the trolling motor and a separate approved starting battery for the engine. This keeps the trolling-motor energy supply separate from the critical engine-starting function.
What About 24V and 36V Trolling Motors?
Choosing a battery for a 24V or 36V trolling motor starts with matching the complete battery-bank voltage to the motor rating. Compatible 12.8V batteries may be connected in series when the exact battery model permits it:
- Two matching 12.8V batteries in series create a 25.6V nominal battery bank.
- Three matching 12.8V batteries in series create a 38.4V nominal battery bank.
Series-connected batteries should be the same model, capacity and age, with similar states of charge before connection. Use a charging method designed for the complete bank voltage and follow the battery and trolling-motor manuals.
Do not mix 314Ah and 628Ah batteries in the same series bank. Do not mix different brands, capacities or batteries with substantially different usage histories.
Installation and Marine-Environment Precautions
The battery, terminals and cables must be protected in a marine environment. Install the battery in a dry, secure and ventilated compartment, protected from water, salt spray, impact and accidental short circuits.
- Secure the battery so it cannot move when the boat turns or encounters waves.
- Use appropriately rated marine cable, terminals and circuit protection.
- Follow the trolling-motor manufacturer’s circuit-breaker recommendation.
- Keep terminal connections clean, tight and protected from corrosion.
- Choose cable size based on current, total cable length and acceptable voltage drop.
- Do not expose the battery or connections to immersion unless the product has a documented rating for that condition.
Because this guide does not specify a universal cable size or breaker rating, use the motor manufacturer’s instructions or consult a qualified marine electrical installer.
Charging the Battery Between Trips
Use charging equipment with settings compatible with the exact LiFePO4 battery model. A 628Ah battery stores twice the rated energy of a 314Ah battery, so it will generally require about twice as long to recharge when both batteries receive the same charging current and need the same percentage of capacity restored.
Charging time also depends on starting state of charge, charger output, temperature and the charging profile. Do not select a charger only by how quickly you want to finish charging. Its voltage and current must remain within the battery’s documented limits.
The batteries include low-temperature charging protection, but installation and charging should still follow the product manual. If the BMS stops charging because of temperature or another protection condition, identify and correct the cause instead of repeatedly bypassing the protection.
Bluetooth Monitoring Helps with Trip Planning
Bluetooth monitoring can help users observe battery state of charge, voltage, current and operating status. After several trips, the data can provide a better picture of actual energy use under different motor speeds and water conditions.
Bluetooth monitoring does not increase battery capacity and does not replace the trolling-motor specifications. It is a practical tool for checking consumption and deciding when to recharge.
A Simple Selection Checklist
- Confirm the trolling motor’s rated voltage.
- Find its maximum amp draw and startup-current requirement.
- Confirm that the battery’s documented discharge limits are suitable.
- Estimate how long and how aggressively the motor will be used.
- Add the energy use of other equipment on the same battery bank.
- Check available installation space and mounting support.
- Confirm charging equipment and time between trips.
- Choose properly rated cables, terminals and circuit protection.
- Keep a separate approved starting battery for the boat engine.
View the BUKNUWO 12.8V 314Ah Bluetooth LiFePO4 Battery
View the BUKNUWO 12.8V 628Ah Bluetooth LiFePO4 Battery
Frequently Asked Questions
Is a 314Ah LiFePO4 battery enough for a trolling motor?
It may provide substantial capacity for many trips, but capacity alone cannot confirm compatibility. Check the motor voltage, maximum amp draw, startup-current requirement and the battery’s documented discharge limits.
Does a 628Ah battery provide twice the runtime of a 314Ah battery?
The 628Ah model has twice the rated capacity. Under the same load and operating conditions, theoretical runtime may be approximately twice as long. Actual runtime changes with motor speed, boat weight, wind, water current, wiring and other loads.
Can these batteries start an outboard motor?
No. The BUKNUWO 314Ah and 628Ah models are deep-cycle energy-storage batteries, not starting batteries. Do not use them to start an outboard motor, inboard engine or other engine.
Can I use a 12.8V battery with a 24V trolling motor?
A single 12.8V battery does not provide the correct nominal voltage for a 24V motor. A compatible series battery bank or an appropriate 24V-class battery is required. Follow the instructions for both the battery and the trolling motor.
Is the 628Ah battery more powerful than the 314Ah battery?
It stores twice the rated energy, but both models have the same published 200A maximum continuous discharge current. The main difference is stored capacity and potential runtime, not a higher published continuous-current rating.
Can I use the BMS over-current protection value as a surge rating?
No. An over-current protection threshold describes a BMS protection function. It is not a recommended operating current or a guaranteed usable surge-current rating.
Are these batteries waterproof?
This guide does not claim a waterproof rating. Install the battery in a dry, secure and ventilated compartment and protect the battery, terminals and connections from water and salt spray.
Final Recommendation
Choose the 314Ah model when its capacity meets the planned trip and a smaller installation is preferable. Consider the 628Ah model when longer use, more reserve energy or additional compatible onboard loads justify the larger battery.
In both cases, confirm motor voltage, maximum current and startup requirements before purchase. The right lithium trolling motor battery must satisfy voltage, capacity, continuous-current and startup-current requirements. Capacity determines how much energy is stored, while the battery’s documented discharge limits determine whether it can support the load. Neither battery should be used as an engine-starting power source.
Contact BUKNUWO Support for Battery Selection Help
Product specifications and connection limits should be verified against the current manual for the exact battery model before installation. This article provides general planning information and does not replace the battery, trolling-motor or vessel manufacturer’s instructions.
